SYN-10C-F
Overview:
SYN-10CF single system series are designed for 100-600sqm indoor coverage solution. Such as the Villa, the Restaurant, the coffee shop, the KTV, the bar.... It can support any two system of CDMA, GSM, DCS, PCS, WCDMA, AWS, LTE.

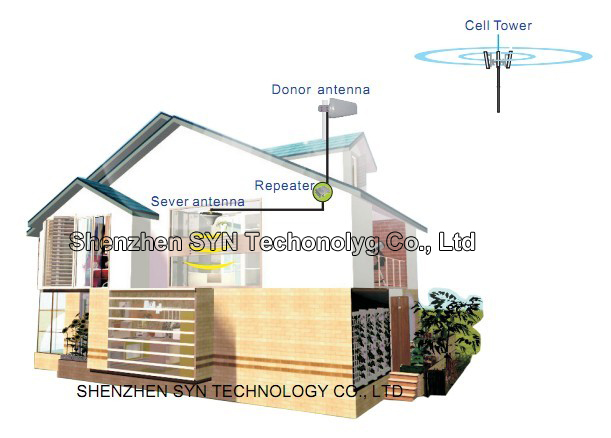

Using a revolutionary technology that protects the carrier network, the SYN-10CF single system improves indoor cell phone coverage by capturing and repeating the outside signal, bringing it into the building and enhancing it.
This process creates a "Cell Zone" in blind signal area.
Features:
1. Elegant and Compact design
2. Built-in AGC and ALC circuits, which can automatically control the gain of the repeater depending upon the strength of input signals.
3. 15dB MGC(Manual gain control) 5dB one step available for both uplink and downlink to adjust the gain value for proper coverage during installation or maintenance.
4. Auto shut off function available for both uplink and downlink to avoid deep self-oscillations from jamming the towers, saving your trouble from operators.
5. Low power consumption - 6W only.
Item No. and Frequency:
Item No. Frequecies
SYN-C10CF CDMA800(Uplink: 824-849Mhz, Downlink: 869-894Mhz)
SYN-C10CF GSM850(Uplink: 824-849Mhz, Downlink: 869-894Mhz)
SYN-G10CF GSM900(Uplink: 890-915Mhz, Downlink: 935-960Mhz)
SYN-D10CF DCS1800(Uplink: 1710-1785Mhz, Downlink: 1805-1910Mhz)
SYN-P10CF PCS1900(Uplink: 1850-1910Mhz. Downlink: 1930-1990Mhz)
SYN-W10CF WCDMA2100(Uplink: 1920-1980Mhz, Downlink: 2110-2170Mhz)
SYN-A10C-F AWS2100(Uplink:1710-1755Mhz, Downlink: 2110-2155Mhz)
SYN-L10C-F LTE700 or LTE2600 or LTE1800
Coverage:
100-600sq.m coverage.
Specifications:
|
Electrical specification
|
Uplink
|
Downlink
|
|
Frequency Range
|
CDMA800
|
824 ~ 849 MHz
|
869 ~ 894 MHz
|
|
CDMA1900
|
1850 ~ 1910 MHz
|
1930 ~ 1990 MHz
|
|
GSM850
|
824 ~ 849 MHz
|
869 ~ 894 MHz
|
|
GSM900 & EGSM
|
880 ~ 915 MHz
|
925 ~ 960 MHz
|
|
DCS
|
1710 ~ 1785 MHz
|
1805 ~ 1880 MHz
|
|
PCS
|
1850 ~ 1910 MHz
|
1930 ~ 1990 MHz
|
|
WCDMA
|
1920 ~ 1980 MHz
|
2110 ~ 2170 MHz
|
|
AWS
|
1710 ~ 1755 MHz
|
2110 ~ 2155 MHz
|
|
LTE
|
700 MHz( A, B, C, D band optional)
|
|
2500 ~ 2550 MHz
|
2620 ~ 2670 MHz
|
|
Max .Gain
|
≥ 60dB
|
≥ 65dB
|
|
Max .Output Power
|
|
≥10dBm
|
≥10dBm
|
|
Band width (-3dB)
|
Wide Band
|
|
MGC ( Step Attenuation )
|
≥ 15dB
|
|
5, 10 and 15dB with two DIP switches
|
|
Automatic Level Control
|
≥ 15dB,auto shut off after 15dB
|
|
Gain Flatness
|
GSM & CDMA
|
Tpy ≤ 6dB(P-P); DCS,PCS ≤ 8dB(P-P)
|
|
WCDMA
|
≤ 2dB/ 3.84MHz,Full Band ≤ 5dB(P-P)
|
|
Noise Figure
|
≤ 6dB
|
|
VSWR
|
≤ 1.8
|
|
Group Delay
|
≤ 1.0μs
|
|
Frequency stability
|
≤ 0.01ppm
|
|
Spurious Emission &
Output inter-modulation
|
GSM Meet ETSI TS 151 026 V 6.1.0
|
|
WCDMA Meet 3GPP TS 25.143 ( V 6.2.0 )
|
|
CDMA Meet IS95 & CDMA2000
|
|
WCDMA System
|
Spurious Emission Mask
|
Meet 3GPP TS 25.143 ( V 6.2.0 )
|
|
Modulation Accuracy
|
≤ 12.5%
|
|
Peak Code Domain Error
|
≤ -35dB@Spreading Factor 256
|
|
CDMA System
|
Rho
|
ρ > 0.980
|
|
ACPR
|
Meet IS95 & CDMA2000
|
|
LED Alarm
|
Standard
|
|
Power LED
|
Green light when power on.
|
|
ALC LED
|
Orange @ ALC 1~5dB, Red @ ALC 15dB~20dB,
|
|
LED off after 5 seconds red color
|
|
Mechanical Specifications
|
Standard
|
|
I /O Port
|
N-Female
|
|
Impedance
|
50 ohm
|
|
Operating Temperature
|
-25ºC~+55ºC
|
|
Environment Conditions
|
IP40
|
|
Dimensions
|
176x100x43mm
|
|
Weight
|
≤ 0.85Kg
|
|
Power Supply
|
Input AC90~264V,output DC5V / 2A
|
